| Product classification
> Ultrasonic flowmeter > 7500
Series |
| UHM-7500
Series |
|
|
|
|
|
|
|
| No
|
Model
Name
|
PDF
Download
|
| Catalog
| English
Operating Manual
|
| 1
| Ultrasonic flow meter
(7500 Series) |
 Download[439.0
KB] |
|
|
|
|
|
| |
|
|
 Product
Feature
|
•
Can
select measurement accuracy : ±1%,
±2%, ±3%
•
Can
select the 4~20mA * 2wire type and the battery type.
•
Measurement
of low flow rates and minimum flow velocity of 0.01m/s
•
No
pressure loss and a zero fault rate with no running parts
•
High-efficient
battery used up to 6 to 10 years
•
IP68-rated
protection, and used 2 meter deep water.
•
High-temperature
erosion-resistant ceramic sensors, and operating temperature
ranging from -40 to 160℃
•
Can
select the vertical or horizontal view and the remote type.
•
Displays
circulation such as forward(and reverse)-direction totalize
flow rate, instant flow rate and flow
velocity.
|
|
|
|
| |
|
|
| Product
Application
|
•
Water
supply, draining off and the processor of
|
•
Food,
Medicine, paper-made
|
filthy
water
|
•
Automobile
making and check-up
|
•
Oil
field, petroleum chemical engineer system
|
Semi-conductor
(Pure water)
|
•
Power
plant(heat power, water power, fire power)
|
•
Heat net
balance of heat supply system
|
•
Steel
factory, mining industry
|
|
|
|
|
| |
|
|
|
Product Description
|

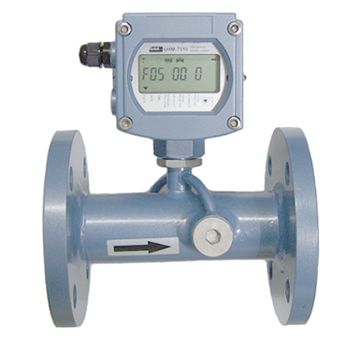

ientek 7500 Series is an
ultrasonic flow meter designed to address shortcomings of
the existing fluid
flow meters.
It adopts the same standard as the
existing pipes, so it can be applied and installed for a
wide range of
DN15~DN1000m/m pipes.
The battery type is designed to measure
flow rates for 6 to 10 years without power connection, and
users
can also select the 4~20mA * 2wire
type, which requires electric current output.
Combines merits of the existing volumetric
type, variable area, turbine, parasitic and electronic flow
meters,
and provides the output of
RS-232, RS-485 and 4~20mA electric currents as basics, with
M-BUS, GPRS
and CDMA communications
available as options.
|
|
|
|
