| Product classification
> Ultrasonic flowmeter > 7200
Series |

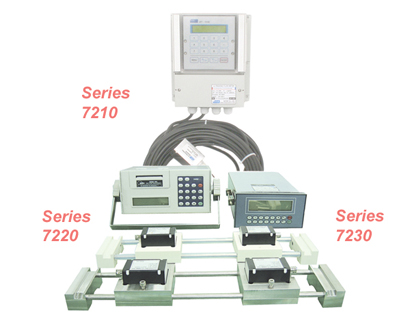

| UFT-7200
Series |
|
|
|
|
|
|
|
| No
|
Model
Name
|
PDF
Download
|
| Catalog
| English
Operating Manual
|
| 1
| Ultrasonic flow meter
(7200 Series) |
 Download
[503.0 KB] |
|
|
|
|
|
| |
|
|
 Product
Feature
|
Series
7200 is single board, self-contained and state of the art
ultrasonic flow meter.
It has the
notable characteristics of high precision, high reliability,
high performance, low price etc..
Main features are
•
Advanced
intelligent display, computation and printing to suit
user's diversified requirements.
The
flow is displayed in all pertinent engineering units.
It
runs out of regular power(110V/220V), built-in vatter or DC
power.
•
Using the
most advanced direct-time-measuring method, the unit offers
a signal resolution of 0.2ns.
In
addition, advanced data processing functions ensures 7200 of
hight linearity.
•
Signal
outputs including current signal, frequency signal and
RS-232 serial data ;
switch
output includes one OCT and one relay output ;
And
all the outputs displayed on the unit can be configured to
be transmitted to a PC via RS-232C.
|
|
|
|
| |
|
|
| Product
Application
|
•
Water
supply, draining off and the processor of
|
•
Food,
Medicine, paper-made
|
filthy
water
|
•
Automobile
making and check-up
|
•
Oil
field, petroleum chemical engineer system
|
Semi-conductor
(Pure water)
|
•
Power
plant(heat power, water power, fire power)
|
•
Heat net
balance of heat supply system
|
•
Steel
factory, mining industry
|
|
|
|
|
| |
|
|
| Product
Description
|
When
an ultrasonic wave travels in a liquid, the flow of the
liquid will cause its speed to change.
When it travels in the flow direction, its
speed increases and against it, it decreases.
By measuring the difference in travel
times between both directions, one can measure the flow
speed.
As shown in Chart 1, a pair of
sensors are mounted upstream and downstream on the surface
of the pipe.
Its mounting configuration
can be 'Z' or 'V'. The
time difference of ultrasonic signals transmitted and
received across upstream and downstream
are calculated as below;
|
|
|
|
