| Product classification
> Thermal mass flowmeter >
3200
Series |
| HMFM 3200
Series |
|
|
|
|
|
|
|
| No
|
Model
Name
|
PDF
Download
|
| Catalog
| English
Operating Manual
|
| 1
| FLG Mass Flow Meter
(3200 Series) |
 Download
[503.0 KB] |
Download
[864.0 KB] |
Download
[636.0 KB] |
|
|
|
| |
|
|
 Product
Feature
|
•
Close
loop control
|
•
Direct
mass flow monitoring eliminates need for
|
•
24 bit
Analog digital converter (ADC)
|
temperature
and pressure compensation
|
•
Output
accuracy ± 0.1%, ±2.5㎂
(4~20mA)
|
•
Greatly
reduces upstream piping requirements
|
Output
accuracy ±0.01%, 1mV (0~10VDC)
|
•
Outstanding
Range ability
|
•
Field
adjustment of critical flow meter
|
•
One-second
response to changes in flow rate
|
settings
Smart interface (RS-232)
|
•
CE, EEx,
CENELEC (Pending)
|
•
Field
validation of flow meter calibration
|
|
|
|
|
| |
|
|
| Product
Application
|
•
Custody
transfer
|
•
Heating /
ventilation
|
•
Chemical
reactions
|
•
Air
conditioning
|
•
Combustion
|
•
Fluid
power
|
•
Cell
culture
|
•
Cooling /
Drying and mixing
|
•
Food
processing
|
|
|
|
|
| |
|
|
| Product
Description
|

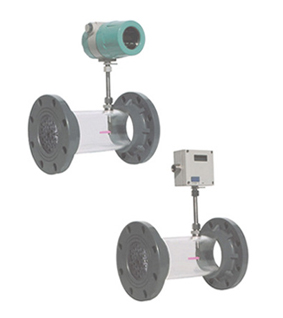

The
3200S Smart-INTM
flow body
eliminates velocity profile distortions, swirl and
temperature
stratifications in the gas
stream and reduces the amount of upstream piping required
for accurate
flow measurement.
The versatile
microprocessor-based transmitter integrates the functions of
flow measurement, flow
range adjustment,
meter validation and diagnostics, in either a probe-mounted
or remote housing.
Mass flow rate and
totalized flow, as well as other configuration variables,
are displayed on the
meter’s optional 2
x 16 LCD pannel. The programmable transmitter is easily
configured via RS-232
communication port
and ientek’s Smart InterfaceTM
software, or via the display and magnetic switches
on the instrument panel.
The Series 3200S
allows you to configure or change the following password
protected parameters:
flow range,
totalize, alarm settings, time response, low flow cutoff and
a calibration correction factor
that
compensates for flow profile variations.
ientek’s Smart InterfaceTM
software guides you through a procedure to fully validate
instrument
performance.
The meter is available with a variety of
input power, output signals, mounting and packaging options.
|
|
|
 |
|
|
|
